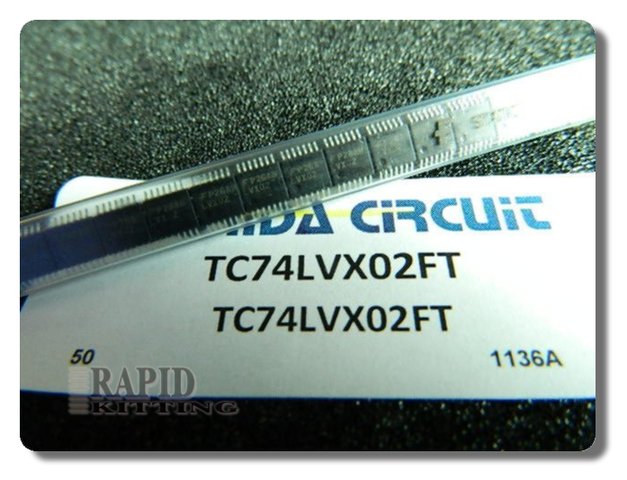

TC74LVX02FT — low-voltage 2–3.6 V & ~4.5 ns speed

TC74LVX02FT is a Toshiba quad 2-input NOR gate for compact, low-voltage logic. It runs on 2–3.6 V rails, switches in ~4.5 ns at 3.3 V, and draws only about 2 µA in standby. Inputs include power-down protection, and the TSSOP-14 package keeps footprints tight (≈5.4 × 6.4 × 1.0 mm). TC74LVX02FT is marked EOL; for new designs Toshiba recommends 74VHC02FT with similar characteristics. Use TC74LVX02FT in controllers, sensors, and general glue logic where speed and efficiency matter. Ready to source TC74LVX02FT or a recommended cross? Request a fast U.S. quote now.
